Overview

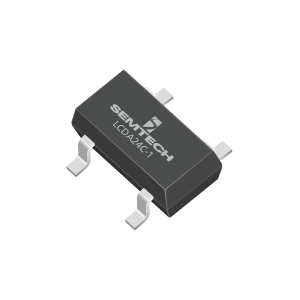

The LCDA24C-1 is a low capacitance transient voltage suppressor (TVS) diode array. It is designed to protect sensitive CMOS ICs from the damaging effects of ESD and lightning.
Product is not recommended for new design.
Features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 10 A (8/20 µs)
- Configuration optimized for easy board layout
- Protects one line pair
- Low capacitance (< 10 pF) for high-speed interfaces
- Low clamping voltage
- Low leakage current
- Working voltage: 24 V
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
| Documents | Release Date | Type |  |
|---|---|---|---|
| LCDA24C-1 Datasheet | 2019-11-06 | | |
| LCDA24C-1 Datasheet | 2019-11-14 | | |
Applications
- ADSL interfaces
- RS-232, RS-422, V.90 interfaces
- Multi-protocol serial transceivers
- High-speed data lines
- Portable electronics
- WAN/LAN equipment
