USB ESD Protection
USB4 and USB 3.2 are quickly emerging as key data buses across a wide host of electronics equipment whereas USB 2.0 interfaces are prevalent across consumer, industrial, telecom, and communications equipment. These high-speed data ports are extremely vulnerable and sensitive to damage and latch-up from electrostatic discharge (ESD), electrical fast transients and cable discharge threats. Semtech provides industry leading, low-clamping voltage ESD protection solutions to safeguard USB ports from ESD and overvoltage transient threats.

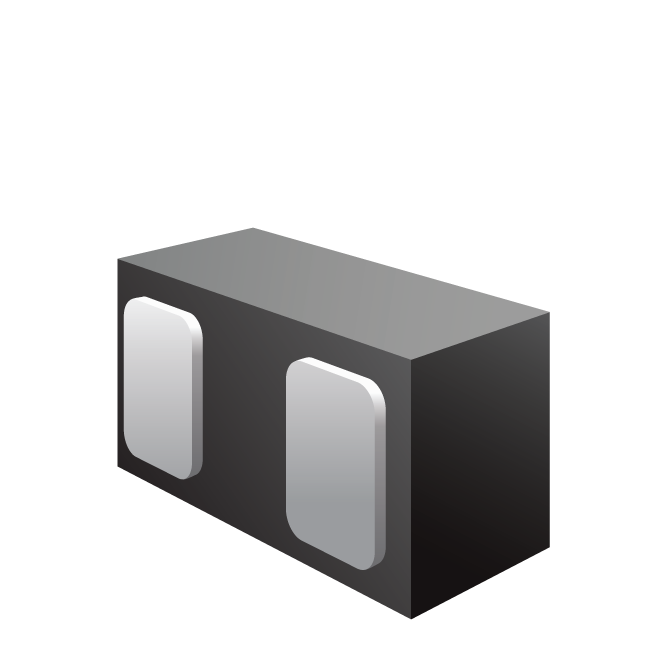

Femto Farad RailClamp® 1-Line, 200fF ESD Protection
Femto Farad RailClamp® 1-Line, 250fF ESD and EOS Protection
SurgeSwitch™, 1-line 22V EOS Protection
