EClamp2522P
The EClamp®2522P is an easily implemented solution for protection and termination of low speed or full speed Universal Serial Bus (USB) ports. Each device will provide termination, filtering, and ESD protection for one upstream USB port on cellular phones and other portable electronics.
Features

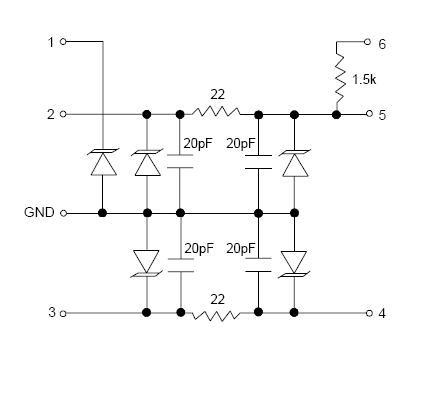

- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- TVS working voltage: 5.25V
- Termination Resistor: 22 Ohms
- Capacitance: 45pF (Max at VR = 0V)
- Protection and filtering for one USB port
- Solid-state technology
- Lead-free, RoHS/WEEE compliant
- USB Ports
- Cellular Handsets
- PDAs
- PC Peripherals
- MP3 Players
Applications
Packaging

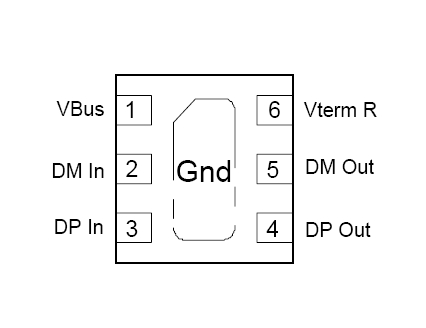

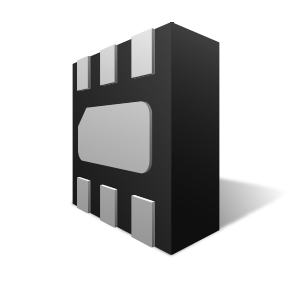

- SLP1616P6
- 3000 pcs, Tape and Reel
Order Codes
- EClamp2522P.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
ECLAMP2522P
Part Description
USB UPSTRAM PORT FILTER AND TVS FOR EMI FILTERING AND ESD PROTECTION
# of leads
6
Package Type
SLP1616P6
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
NiPdAu
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Declarations and Reports
IPC-1752-2
