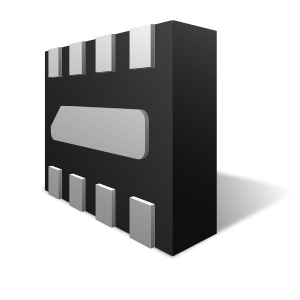

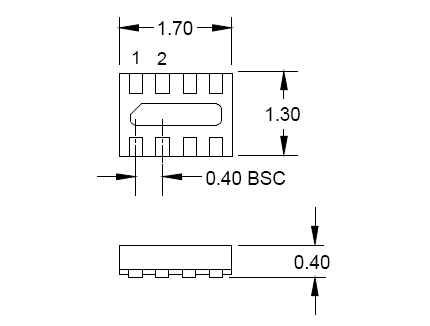

The EClamp®2465T is a combination EMI filter and line termination device with integrated TVS diodes for use on SIM Card interfaces on cellular phones and other portable electronics.
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- TVS working voltage: 5V
- Termination Resistors: 100 Ohms & 47 Ohms
- Capacitance: 10pF (Typical at VR = 0V)

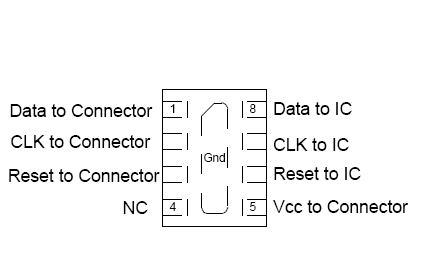

- Protection and filtering for four lines
- Solid-state technology
- Lead-Free, RoHS/WEEE Compliant
- SIM Card
- Cell Phone
- PDAs and Smartphones
- 3000 pcs Tape and Reel
