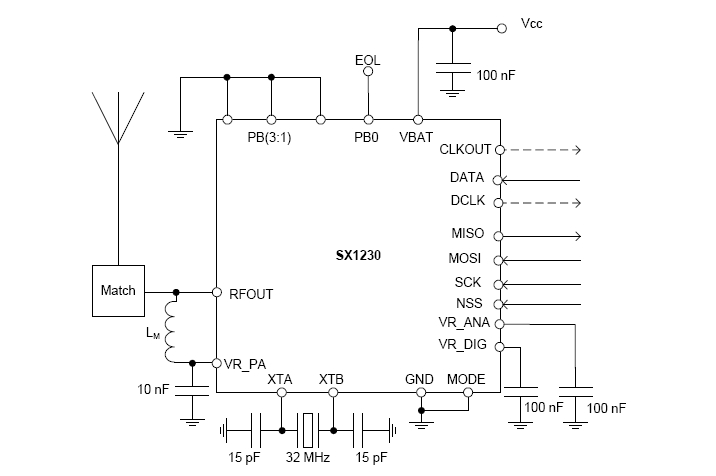

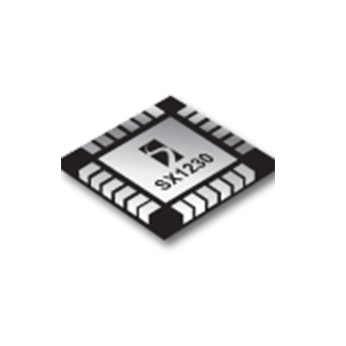

The SX1230 is a fully integrated transmitter which can operate in the 315, 434, 868 and 915MHz licence free ISM bands.
- +17dBm to -18dBm Programmable output power.
- Bit rates up to 600kbits / sec.
- FSK, GFSK, MSK, GMSK and OOK modulation.
- Stand-alone mode: No need for a host MCU.
- Consistent RF performance over a 1.8 to 3.7V range.
- Low phase noise (-95dBc/Hz at 50kHz) with automated PLL calibration and fully integrated VCO and loop filter.
- On chip RC timer for timer / wake-up applications.
- Low battery detection.
- Remote Keyless Entry (RKE)
- Remote Control / Security Systems
- Voice and Data RF Communication Links
- Process and building / home control
- Active RFID
- AMR / AMI Platforms
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
