μClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to EOS, lightning, CDE, and ESD. They feature large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- Transient protection for VBUS and data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 23A (8/20µs)
- Protects one line
- Low ESD clamping voltage
- Working voltage: 26V
- Low leakage current
- Extremely low dynamic resistance: 0.15Ω (Typ)
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- VBUS Protection
- Battery Protection
- Digital Lines
- Industrial Sensing

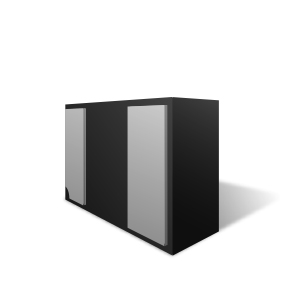

- SGP1610N2: 1.6 x 1.0 x 0.57mm
- µClamp2671P.TNT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, 10,000 pcs.
