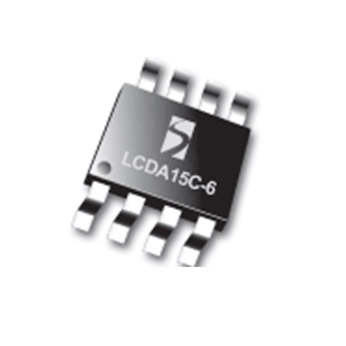

LCDA15C-6
The LCDA15C-6 has been specifically designed to protect sensitive components which are connected to data and transmission lines from over voltages caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Features
- 15 V operating voltage
- Protects six I/O lines
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 0.5 kV, 12 A (8/20 µs)
- Low capacitance for high-speed interfaces
- High surge capability
- Low clamping voltage
- Solid-state silicon-avalanche technology
- Multi-mode transceiver protection
- WAN equipment:
- CSU/DSU
- Multiplexers
- Routers
- ISP equipment
- Customer premise equipment
- Protection for any of the following interfaces:
- RS-232 (V.28)
- RS-422 (V.11, X.21)
- RS-449 (V.11/V.10)
- RS-485
Applications
Packaging

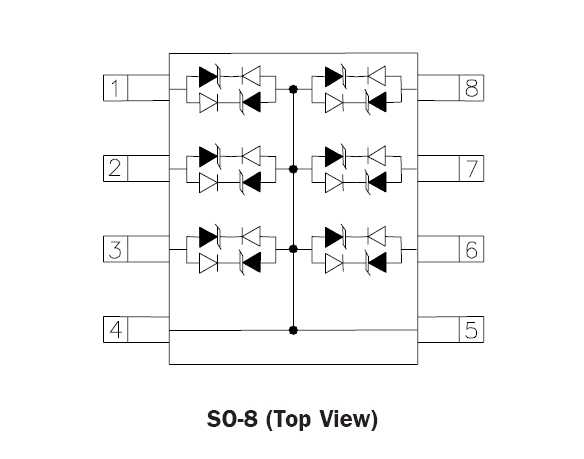

- SO-8
- Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
Order Codes
- LCDA15C-6.TBT
