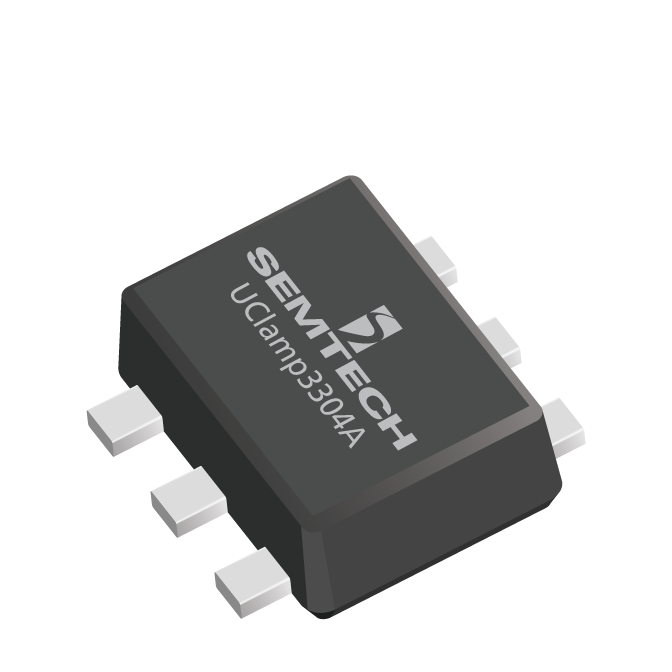

The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. Each device requires less than 2.9mm² of PCB area and will protect up to four lines. They are unidirectional devices and may be used on lines with positive signal polarities.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)

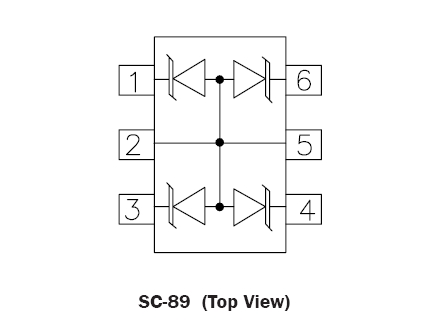

- Protects four unidirectional I/O lines

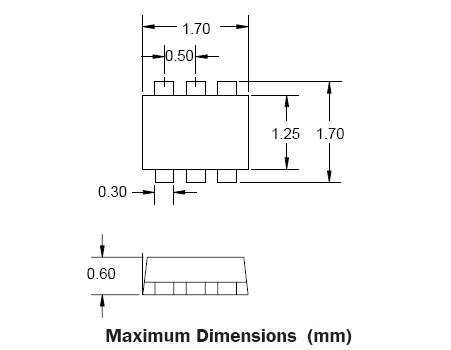

- Ultra-small SC-89 package (1.7 x 1.7 x 0.6mm) requires less than 2.9mm2 of PCB area
- Working voltage: 3.3V
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Lead finish is lead-free matte tin
- Cellular Handsets and Accessories
- Cordless Phones
- Notebooks and Handhelds
- Portable Instrumentation
- Digital Cameras
- MP3 Players
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
