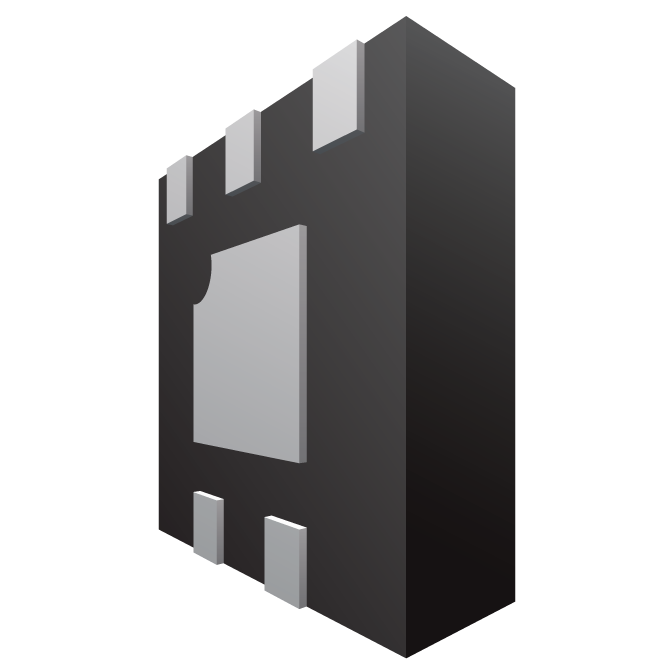

The TClamp®1202P provides robust surge and electrostatic discharge (ESD) protection for safeguarding RS-485 and other 12V lines in industrial applications. This device features high surge current capability of 100A (tp=8/20us) and a low clamping voltage, making it ideal for use in harsh industrial environments.
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) 20kV (air), 15kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 100A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Protects up to two lines
- Low capacitance: (<12pF)
- Operating voltage: 12V
- Low leakage current
- Solid-state silicon-avalanche technology
- RS-485 Surge Protection
- RS-422 Surge Protection
- Industrial Equipment
- Remote Meter Readers
- Automatic Teller Machines
- Digital Surveillance Cameras
- TClamp1202P.TGT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
