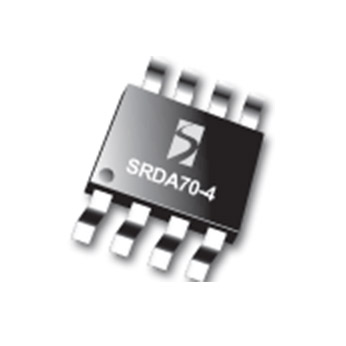

RailClamps are surge rated diode arrays designed to protect high speed data interfaces. The SRDA70-4 has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 1 kV, 24 A (8/20 µs)

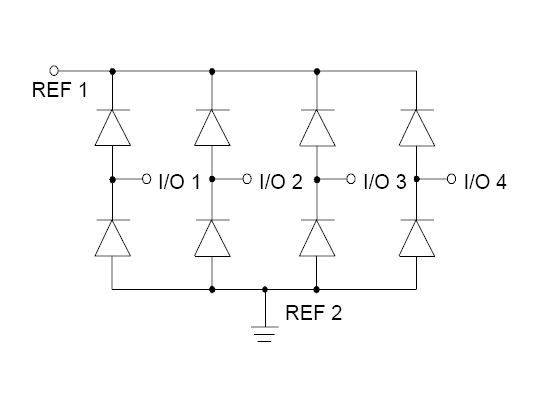

- Array of surge-rated diodes

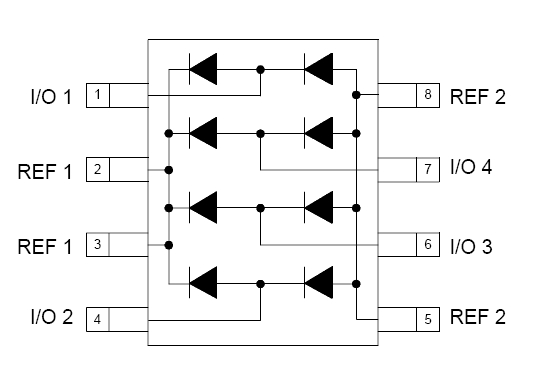

- Protects four I/O lines
- Low capacitance for high-speed interfaces
- High surge capability
- Low forward voltage characteristics
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- Latch-up protection
- Microcontroller input protection
- Token ring
- I2C bus protection
- Video line protection
- Set-top box I/O
- LAN/WAN equipment
- 500 pcs. Tape & Reel
- 95 pcs. Tube
