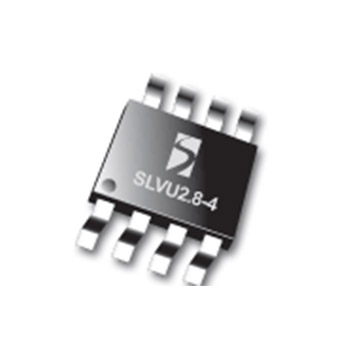

The SLV series of transient voltage suppressors are designed to protect low voltage, state-of-the-art CMOS semiconductors from transients caused by electrostatic discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges.
- 400 Watts peak pulse power (tp = 8/20 µs)
- Transient protection for high speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 24 A (8/20 µs)
- Protects two line pairs (four lines)
- Comprehensive pinout for easy board layout
- Low capacitance
- Low leakage current
- Low operating and clamping voltages
- Solid-state EPD TVS process technology
- Lead-free, RoHS and WEEE compliant
- 10/100 Ethernet
- WAN/LAN equipment
- Switching systems
- Desktops, servers, and notebook PCs
- Base stations
- Analog inputs
- 500 pcs. Tape & Reel
