RClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD & EOS. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- ESD protection for high speed lines to:
- IEC 61000-4-2 (ESD): +/-30kV (contact & air)
- IEC 61000-4-4 (EFT): 4kV, 80A
- IEC 61000-4-5 (Lightning): 20A (tp = 8/20μs)
- Ultra-small package
- Protects one data line
- Low ESD clamping voltage
- Working voltage: 4.0V
- Low capacitance: 0.65pF maximum
- Low leakage current
- Low dynamic resistance: 0.07 Ohms (typ)
- USB 2.0

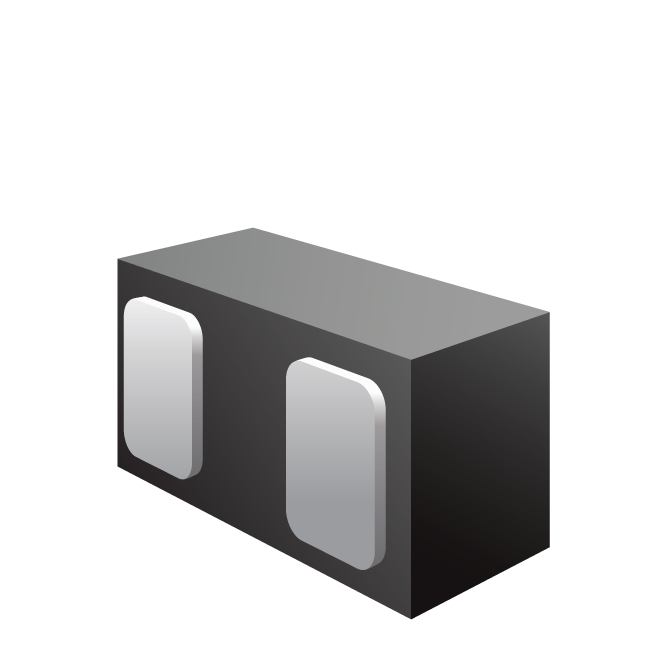

- DFN 0.60 x 0.30 x 0.25mm-2 Lead
