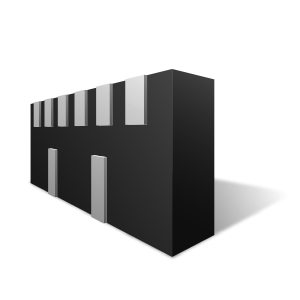

RailClamp® is a low capacitance TVS array designed to protect high speed data interfaces.
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects USB DP, DM, FM radio, and ID Pins to 5V
- Protects USB VBUS operating up to 28V
- Low capacitance (<1pF) on DP, DM, FM and ID Pins
- No insertion loss to 2.0GHz
- Low leakage current
- Low clamping voltage
- Innovative package for easy pcb layout
- Solid-state silicon-avalanche technology
- uUSB Interfaces with FM radio Option
- USB OTG
- RClamp3655P.TCT - Lead Finish: NiPdAu, RoHS/WEEE Compliant
