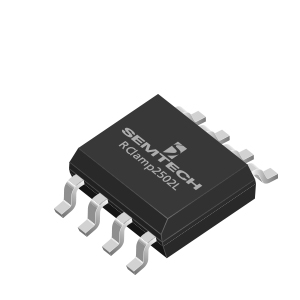

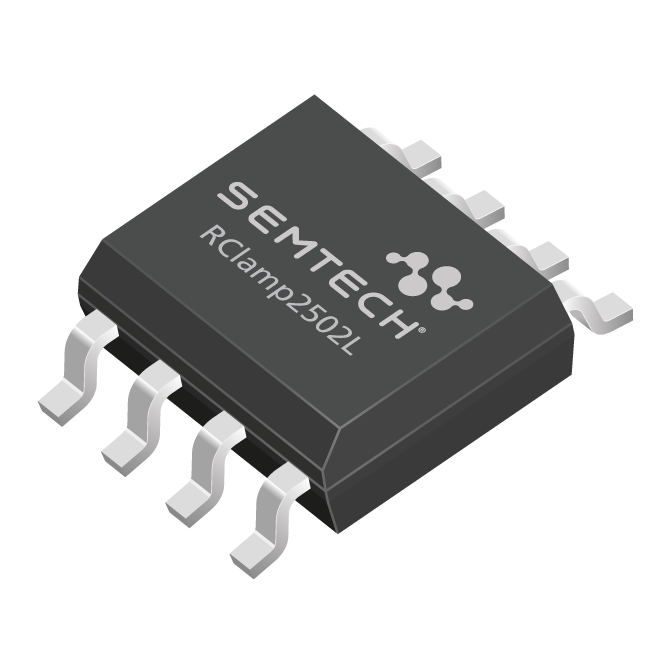

The RailClamp2502L is a low capacitance TVS array designed to protect data interfaces from electrostatic discharge (ESD), cable discharge events (CDE), electrical fast transients (EFT) and lightning surge. The combination of low clamping voltage, high surge capability and low loading capacitance makes the RClamp2502L an ideal solution for protecting Ethernet-based systems.
- Transient protection for high-speed data lines to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 24A (1.2/50μs)
- Array of surge rated diodes with internal TVS Diode
- Protects up to two I/O lines
- Low capacitance (<5pF (Line-to-Line))
- High surge capability: 40A (tp=8/20μ)
- Low operating voltage: 2.5V
- Easy layout
- Solid-state silicon-avalanche technology
- 10/100/1000 Ethernet Interfaces
- CPE Equipment
- GPON Systems
- VoIP Phones
- Video Surveillance Systems
- 500 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
