RClamp®2261ZA is a low capacitance transient voltage suppressor (TVS) that is designed to protect sensitive electronics from damage or latch-up due to electrical overstress (EOS), voltage surges and electrostatic discharge (ESD). RClamp2261ZA offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
- ESD withstand voltage: +/-25kV (contact) per and +/- 30kV (air) per IEC 61000-4-2
- Surge current: 18A (tp = 8/20μs) per IEC 61000-4-5
- Ultra-small package
- Protects one data line
- Low ESD clamping voltage
- Working voltage: ±22V
- Low capacitance: 0.35pF (typ.)
- Low dynamic resistance: 0.22Ω (typ.)
- Solid-state silicon-avalanche technology
- USB Type-C
- Near Field Communication (NFC) lines
- RF antenna
- FM antenna
- Internet of Things (IoT) devices

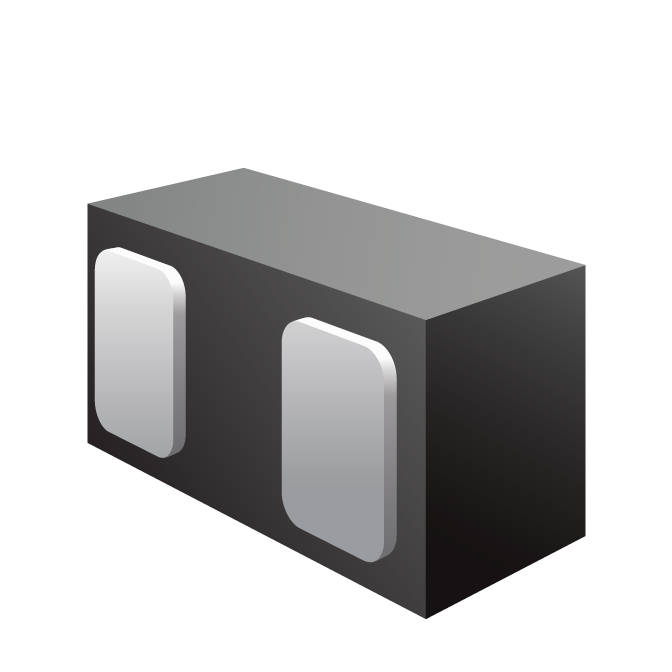

- DFN 0.60 x 0.30 x 0.25 mm 2-lead
