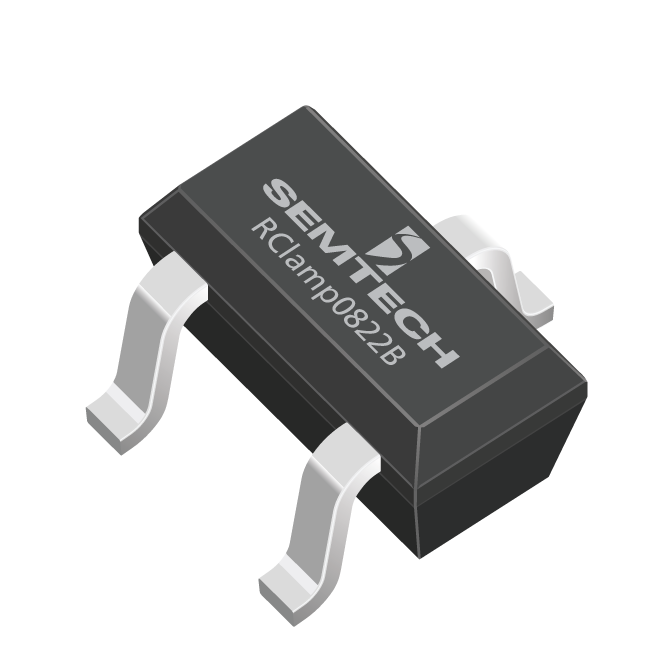

RClamp0822B
The RailClamp portfolio is a series of ultra-low capacitance transient voltage suppressors (TVS) designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by electrostatic discharge (ESD), cable discharge events (CDE) and electrical fast transients (EFT). The RClamp®0822B features a typical capacitance of only 0.7pF and features protection characteristics highlighted by high surge current capability (7A, tp = 8/20μs), low peak ESD clamping voltage and high ESD withstand voltage (±30kV contact & air per IEC 61000-4-2).
Features
- Transient protection to:
- IEC 61000-4-2 (ESD): ±30kV (contact), ±30kV (air)
- Working voltage: 8V
- Protects two data or I/O lines
- Low clamping voltage
- Low capacitance: 0.7pF typical
- Solid-state silicon-avalanche technology
- Antenna
- GPIO
- USB
- Analog video
- Keypad
Applications
Packaging
- SC-75(SOT-523)
Order Codes
- RClamp0822B.C
