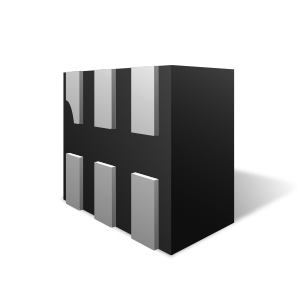

RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±20kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- Protects two I/O lines and a power line
- Low capacitance: 0.2pF typical
- Low clamping voltage
- AEC-Q100 Qualified Part
- Solid-state silicon-avalanche technology
- MMC Port
- Serial ATA
- Video Port
- RClamp0582N.TCT- Pb-Free, Halogen Free, RoHS/WEEE Compliant
