RailClamp® TVS diodes are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (cable discharge events), and EFT (electrical fast transients).
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Protects up to two I/O lines
- Low capacitance (<1.2pF)
- High surge capability: 15A (tp=8/20us)
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- USB 2.0
- Set Top Box
- mp3 Players
- Notebook Computers
- Networking Equipment

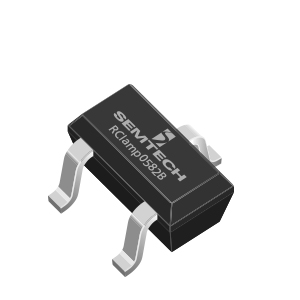

- RClamp0582B.TCT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
