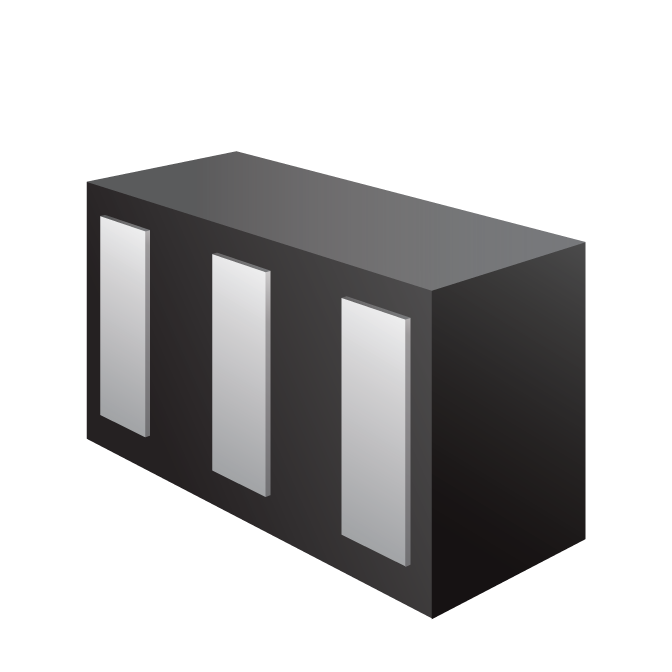

RClamp®0572ZC is an ultra-low capacitance electrostatic discharge (ESD) protection device designed to protect two high-speed lines in an 0201 footprint. This revolutionary package design reduces board space requirements by more than 50% over existing single line solutions. RClamp0572ZC is a three pin device with identical low capacitance transient voltage suppressor (TVS) diodes connected to each pin. Any two pins may be connected to high-speed lines, while the third pin is connected to ground. This gives the designer maximum flexibility in printed circuit board (PCB) routing. Each line has a maximum capacitance of only 0.3pF resulting in a typical corner frequency of 16GHz.
- Transient protection to:
- IEC 61000-4-2 (ESD): ±10kV (contact), ±15kV (air)
- Working voltage: 5V
- Protects two high-speed data line
- Dynamic resistance: 0.54Ohms (Typ)
- Low reverse leakage current: <5nA
- Ultra-low capacitance: 0.3pF maximum
- Solid-state silicon-avalanche technology
- USB Type-C
- USB 3.0
- DFN 0.62 x 0.32 x 0.25mm 3-Lead
