RailClamps® are low capacitance TVS arrays designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT(electrical fast transients).
- ESD protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Array of surge rated diodes with internal TVS Diode

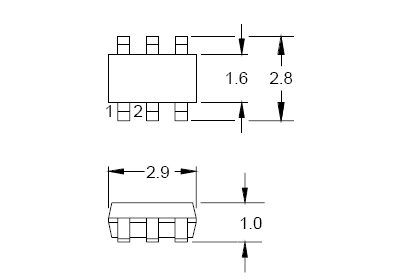

- Small package saves board space
- Protects four I/O lines
- Low capacitance: 5pF maximum
- Low clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- Monitors and Flat Panel Displays
- Digital Video Interface (DVI)
- 10/100/1000 Ethernet
- Notebook Computers

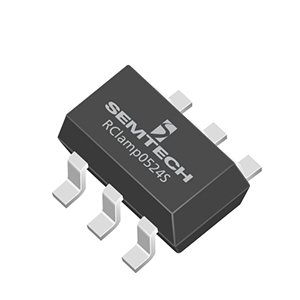

- RClamp0524S.TCT: Lead-Free, WEEE and RoHS, 3000 pcs, Tape And Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
