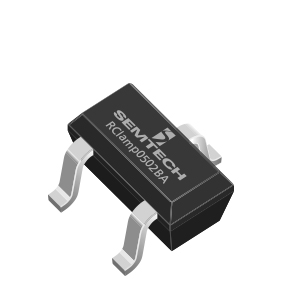

RailClamp® TVS diodes are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (cable discharge events), and EFT (electrical fast transients).
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ±18kV (air), ±12kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Protects up to two I/O lines
- Ultra-Low capacitance (<1pF)
- No insertion loss to >3.0GHz
- Low profile (<1mm)
- Low leakage current and clamping voltage
- Low operating voltage: 5.0V
- Solid-state silicon-avalanche technology
- Mobile Display Digital Interface (MDDI)
- USB 2.0
- Firewire Ports
- GaAs Photodetector Protection
- HBT Power Amp Protection
- Infiniband Transceiver Protection
- Ph-Free, Halogen Free, RoHS/WEEE Compliant
- RClamp0502BATCT - 3000 pc Tape and Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
Datasheets & Documentation
Explore a wealth of downloadable resources and datasheets to assist with prototyping and production.
Login or register for mySemtech to gain access to restricted product documentation and to add documents to your Watch List for update alerts
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
