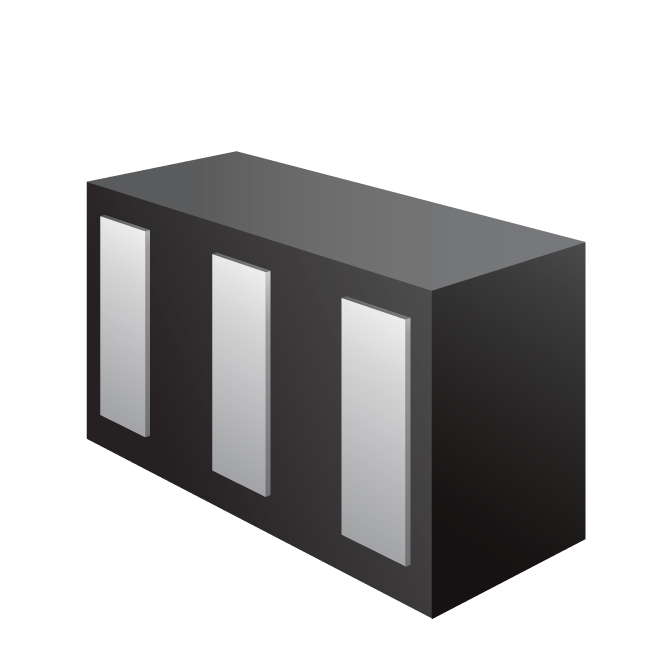

RClamp®03372ZC is an ultra low capacitance electrostatic discharge (ESD) protection device specifically designed to protect high-speed differential lines. RClamp03372ZC offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
- ESD and electrical overstress (EOS) protection
- ESD withstand voltage IEC 61000-4-2 (ESD) ±17kV (air), ±10kV (contact)
- Ultra-low capacitance: 0.22pF typical
- Very small PCB area
- Protects two high-speed data line
- Working voltage: ±3.3V
- Low reverse leakage current: 50nA max at VR=±3.3V
- Low Insertion Loss: 0.9dB (typical) at 10GHz
- Solid-state silicon-avalanche technology
- USB 3.2 Gen 2
- HDMI 1.4 and HDMI 2.0
- USB Type-C
- Thunderbolt 6G/12GSDI
- DFN 0.62 x 0.32 x 0.25 mm 3-Lead
