RailClamp®03354P provides electrostatic discharge (ESD) protection for high-speed data interfaces and features a high maximum ESD withstand voltage of ±12kV contact and ±15kV air discharge per IEC 61000-4-2. RClamp03354P is designed to minimize the dynamic resistance and the TLP clamping. Maximum capacitance on each line to ground is 0.3pF, allowing the RClamp03354P to be used in applications operating in excess of 10GHz without signal attenuation. Each device will protect up to four lines (two high-speed pairs).
- Transient protection to IEC 61000-4-2 (ESD) 15kV (air), 12kV (contact) - IEC 61000-4-5 (lightning) 10A (tp = 8/20μs)
- Package design optimized for high speed layout
- Protects four high-speed data lines
- Working voltage: ±3.3V
- Low capacitance: 0.3pF maximum
- Dynamic resistance: 0.13Ω
- Solid-state silicon-avalanche technology
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- USB 3.2 Gen 1/Gen 2
- HDMI 1.4, HDMI1.4b and HDMI 2.0
- LVDS interfaces

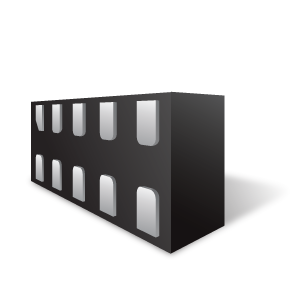

- DFN 2.50x1.00x0.55mm 10-Lead – 5,000 pcs
