Overview

RClamp®01511ZA is an ultra-low capacitance FemtoClamp™ electrostatic discharge (ESD) protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.

Packaging

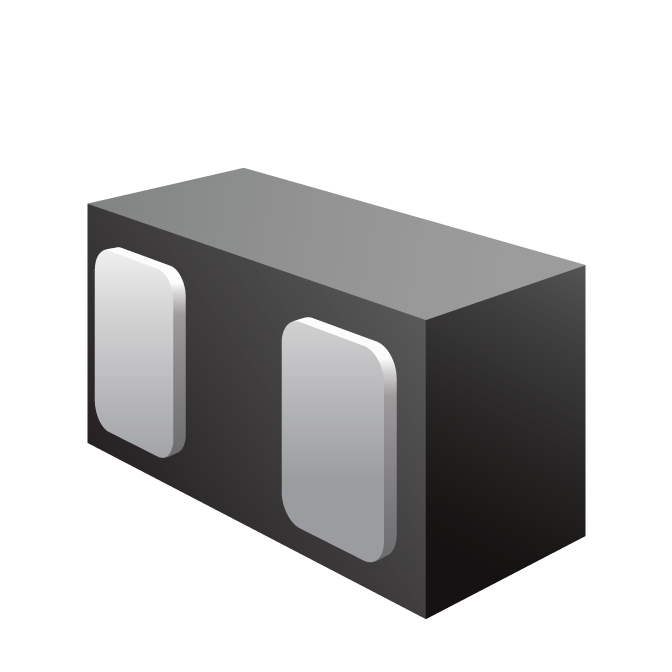

  • DFN 0.60 x 0.30 x 0.25mm 2-Lead

Order Codes

  • RClamp01511ZC.F

PB Free/ROHS

Learn More →

Features

  • Transient protection to:
    • IEC 61000-4-2 (ESD): ±10kV (contact)
  • Working voltage: +1.5V
  • Protects one high-speed data line
  • Low ESD clamping voltage
  • Low reverse leakage current:100nA
  • Ultra-low capacitance: 0.2pF maximum
  • Solid-state silicon-avalanche technology

Applications

  • Thunderbolt 3
  • USB 4
  • USB3.2 Gen 1/Gen 2/Gen 2x2
  • DisplayPort line protection
