RClamp®01211ZC is an ultra low capacitance FemtoClamp™ electrostatic discharge (ESD) protection device specifically designed to protect high-speed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
RClamp01211ZC features excellent ESD protection characteristics highlighted by low peak ESD clamping voltage, and high ESD withstand voltage per IEC 61000-4-2 (±10kV contact). RClamp01211ZC has a maximum capacitance of only 0.2pF and extremely low insertion loss, allowing it to be used on high speed lines such as Thunderbolt 3 and USB4.
- ESD withstand voltage IEC 61000-4-2 (ESD) ±10kV (contact)
- Low ESD clamping
- Ultra-low capacitance: 0.2pF maximum
- Protects one high-speed data line
- Working voltage: 1.2V
- Low reverse leakage current: 100nA max at VR=1.2V
- Solid-state silicon-avalanche technology
- Thunderbolt 3
- USB 3.2 Gen 1/Gen 2/Gen 2x2

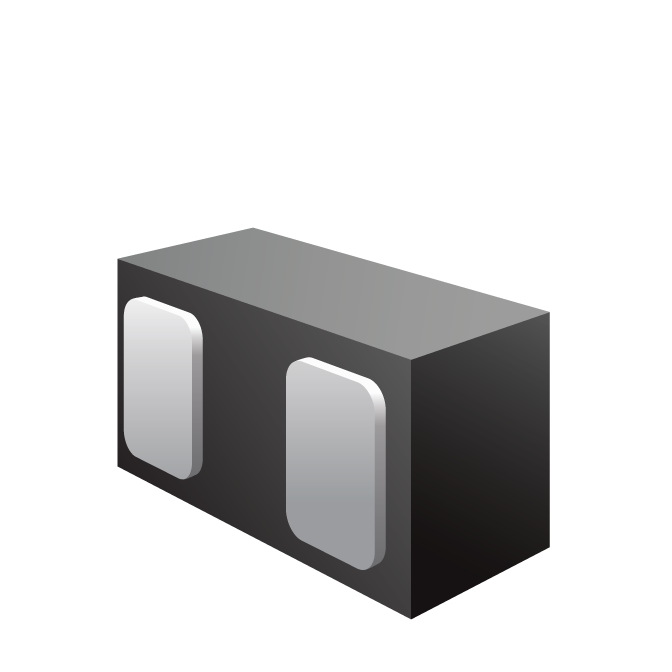

- DFN 0.60x0.30x0.25mm – 2 lead
- RClamp01211ZCFT: Pb-free, Halogen-free, RoHS/WEEE-compliant, 15,000 pcs.
