TClamp®3602P provides dedicated surge and ESD protection for RS-485 and other 24V and 36V lines in industrial applications. This device features high surge current capability of 30A (tp=8/20μs) and low clamping voltage making it ideal for use in harsh transient environments.
- Transient Protection to
- IEC 61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact)
- IEC 61000-4-4 (EFT) 4kV (5/50ns)
- IEC 61000-4-5 (Lightning) 30A (8/20μs)
- Protects up to two lines
- Low capacitance: 4pF Maximum
- Operating voltage: 36V
- Low leakage current
- Pb-Free, Halogen Free, RoHS/WEEE Compliant
- RS-485 Surge Protection
- RS-422 Surge Protection
- Industrial Automation
- Remote Meter Reading
- Digital Surveillance Cameras

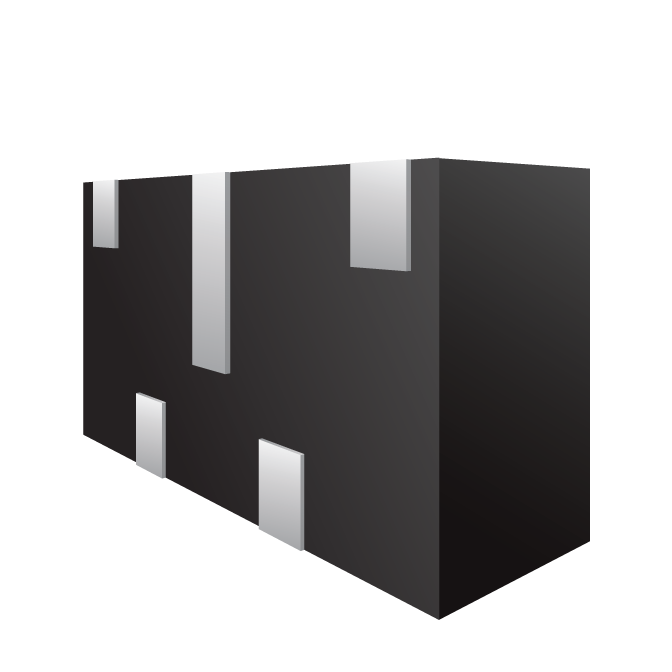

- SLF2010N5: 2.0 x 1.0 x 0.55mm - 3,000 pcs.
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
