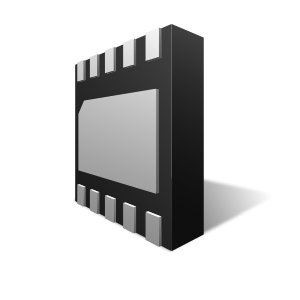

The TClamp0602N is a 6V, 2-line low capacitance transient voltage suppressor (TVS) array designed to provide surge and electrostatic discharge (ESD) immunity on high speed data and telecom interfaces. The TClamp family of TVS arrays is specifically designed to protect telecom and industrial data lines from overvoltage transients caused by ESD, cable discharge events (CDE) and lightning surge.
- Transient protection for high-speed data lines to
- Bellcore 1089 (Intra-Building) 100A (2/10μs)
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) L5, 95A (8/20μs)
- Protects two lines in common and differential mode
- Low capacitance (12pF line-to-line)
- Low operating voltages (6V)
- Low clamping voltage
- Small SLP Package saves board space
- Solid-state technology
- 10/100 Ethernet
- Integrated Magnetics
- Carrier Class Equipment
- ISDN Interfaces
- TClamp0602N.TCT: Lead-Free, RoHS and WEEE Compliant, 3000 pcs.Tape & Reel
