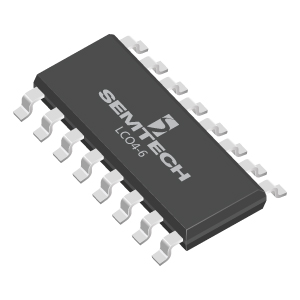

The LC04-6 has been specifically designed to protect sensitive components which are connected to high-speed telecommunications lines from over voltages caused by lightning, electrostatic discharge (ESD), cable discharge events (CDE), and electrical fast transients (EFT).
- Transient protection for high-speed data lines to
- Bellcore GR-1089 IPP = 70 A (10/1000 µs)
- Bellcore GR 1089 IPP = 100 A (2/10 µs)
- ITU K.20 IPP=100A (5/310 µs)
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 100 A (8/20 µs)

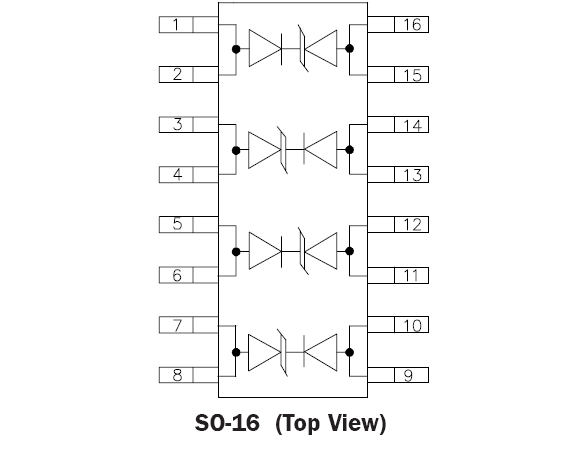

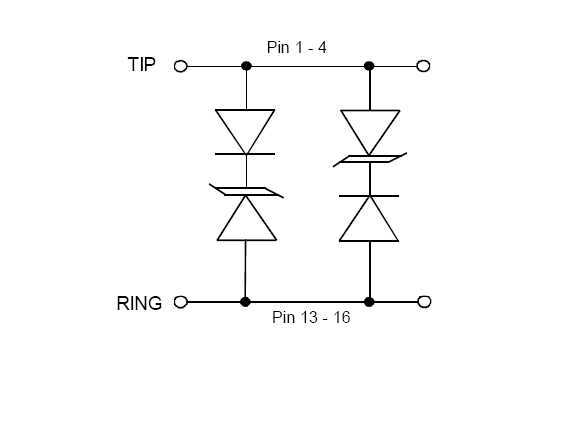

- Protects two tip-and-ring line pairs
- Low capacitance for high-speed interfaces
- High surge capability
- Low clamping voltage
- Solid-state silicon-avalanche technology
- T1/E1 line cards
- Base stations
- WAN equipment
- ISP equipment
- Customer premise equipment
- LC04-6.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
