The SMS series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 24 A (8/20 µs)
- Small package for use in portable electronics
- Protects five I/O lines
- 12 V working voltages
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Cell phone handsets and accessories
- Microprocessor-based equipment
- Personal digital assistants (PDAs)
- Notebooks, desktops, and servers
- Portable instrumentation
- Set-top boxes
- MP3 players
- Cordless phones
- SOT-23 6L

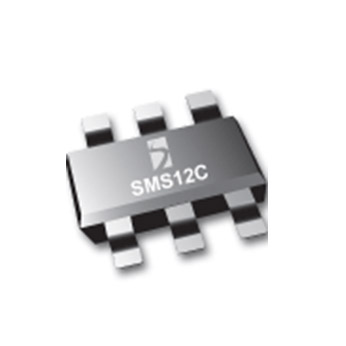

- SMS12C.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
