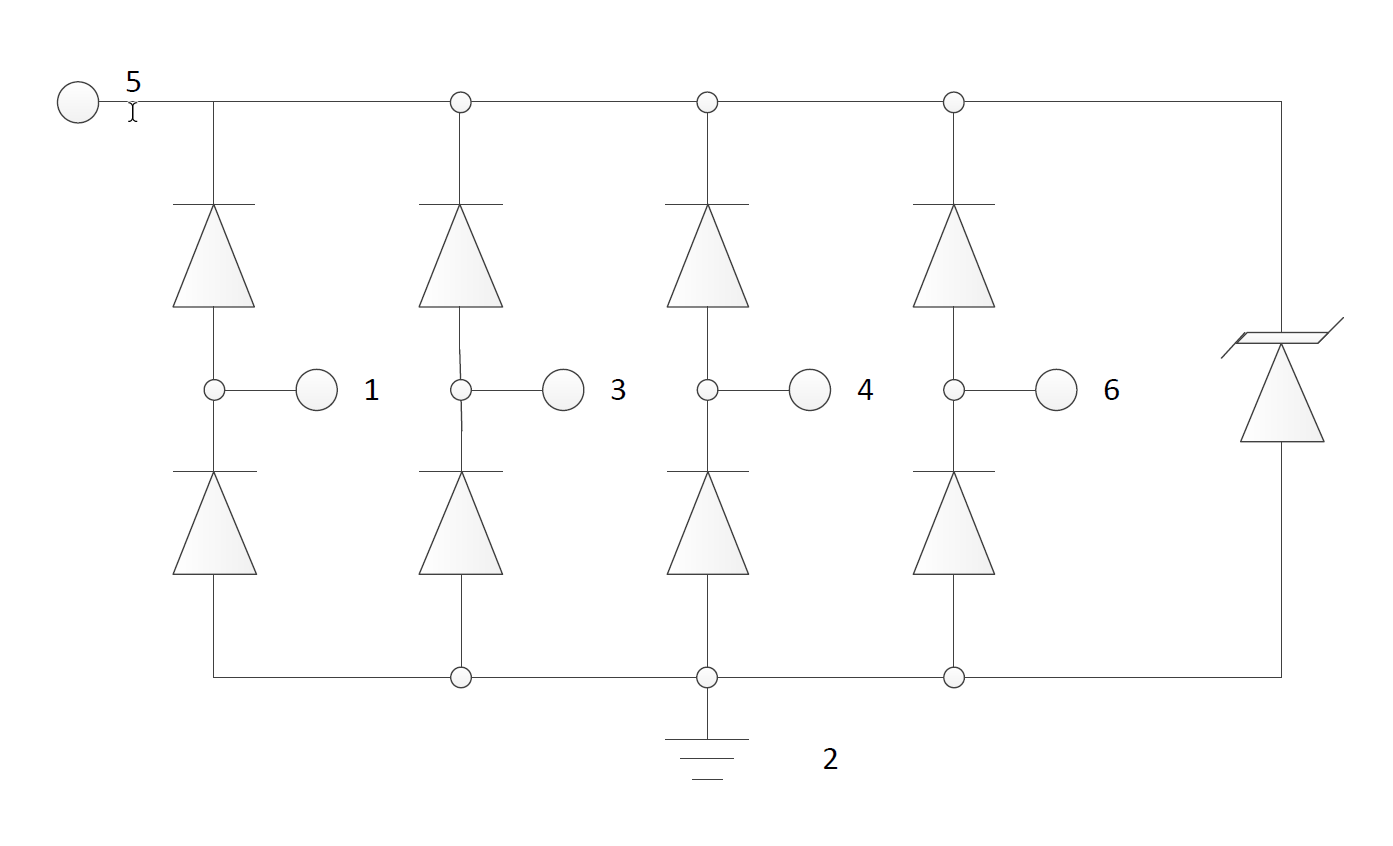

RClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to transient surge events. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.RClamp®0504FB features extremely good ESD and EOS protection characteristics highlighted by low dynamic resistance and high surge capability. Data (I/O) lines are protected from EOS surge events as high as 14A (tp = 8/20μs). Power buses may subjected to even harsher EOS events. The TVS connection at pin 5 allows protection of VBUS lines to 28A (tp = 8/20μs).

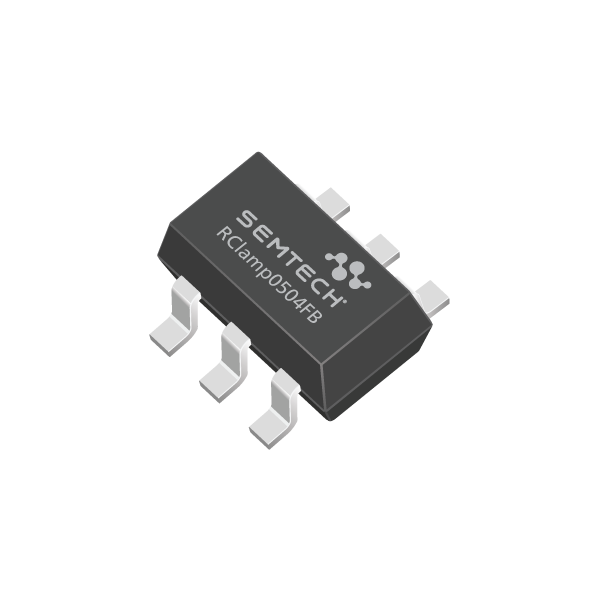

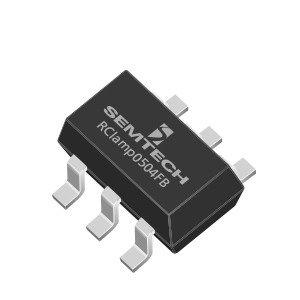

RClamp0504FB is in a 6-pin, SC-70 6L package. The leads are finished with lead-free matte tin. The combination of small size, low capacitance, and high ESD and EOS surge capability makes them ideal for use in applications such as USB 2.0, multimedia cards, and video interfaces.
- High ESD withstand Voltage: +/-24kV (Contact) & +/- 30kV (Air) per IEC 61000-4-2
- High EOS Surge capability
- Low ESD clamping voltage
- Working voltage: 5V
- Low capacitance: 1.1 pF Typical (I/O to GND)
- Low dynamic resistance: 0.25Ω
- Solid-state silicon-avalanche technology
- Monitors and Flat Panel Displays
- Analog Video Lines
- LVDS Lines
- USB 2.0 / USB 3.0
- SIM Ports
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
