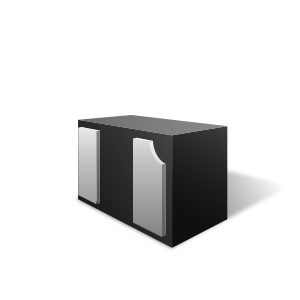

The μClamp3601P, part of the μClamp® series of products, is a high-surge transient voltage suppressor (TVS) optimized for protection of sensitive digital sensors used in proximity switches and industrial control applications.
- Transient protection for data and power lines to
- IEC 61000-4-2 (ESD) ±20kV (air), ±15kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 2A (1.2/50μs)
- Ultra-small package
- Bidirectionally protects one data line
- Low clamping voltage
- Working voltage: 33VLow leakage current
- Solid-state silicon-avalanche technology
- Qualified to AEC-Q100 Grade1
- Two, Three, and Four Wire DC High-Side Proximity Switches
- Digital Sensor Input Protection
- Industrial Controls
- 24V - 33V DC Supply Protection
- Automotive Applications
