μClamp® TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. It features large cross-sectional area junctions for conducting high transient currents. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- Transient protection for data and power lines to
- IEC 61000-4-2 (ESD)
- IEC 61000-4-4 (EFT)
- Cable Discharge Event (CDE)
- Ultra-small package
- Protects one data or DC Power line
- Low clamping voltage
- Working voltage: 24V
- Low leakage current
- Solid-state silicon-avalanche technology
- Pb-Free, Halogen Free, RoHS/WEEE Compliant
- Cellular Handsets & Accessories
- Notebook Computers
- Portable Instrumentation
- Chip-on-Glass Driver IC data line
- 24V DC Power Rails

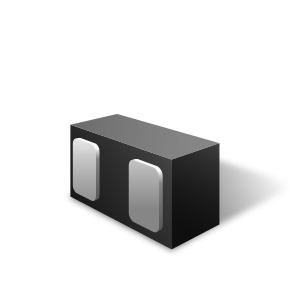

- SLP0603P2X3F: 0.6 x 0.3 x 0.25mm
- 15,000 pcs
