Overview

uClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD). They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.

Packaging

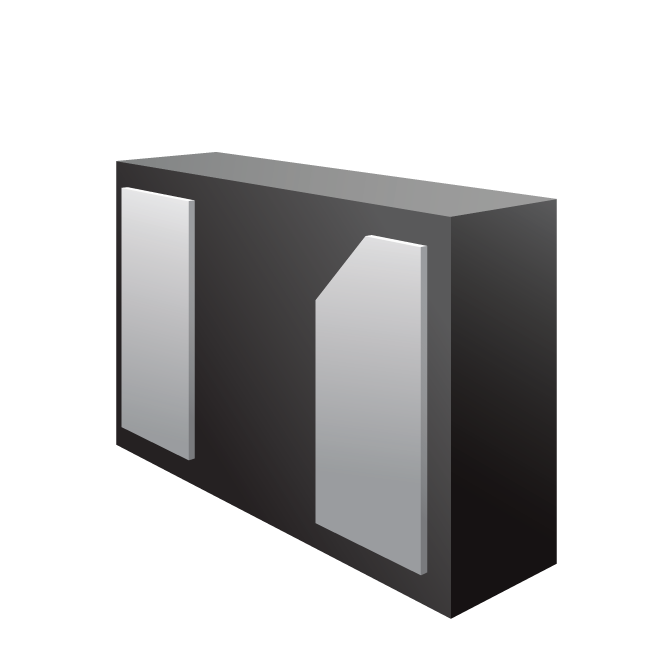

  • DFN 1.0 x 0.6 x 0.25mm 2-Lead

Order Codes

  • uClamp1511ZV.F

PB Free/ROHS

Learn More →

Features

  • High ESD withstand voltage: ±30kV (Contact & AIr) per IEC 61000-4-2
  • High peak pulse current capability: 30A (tp = 8/20μs)
  • Protects one I/O or power line
  • Low ESD clamping voltage
  • Working voltage: ±15V
  • Solid-state silicon-avalanche technology

Applications

  • Cellular handsets and accessories
  • Battery protection
  • Notebooks and handhelds
  • USB Type-C CC Pins
