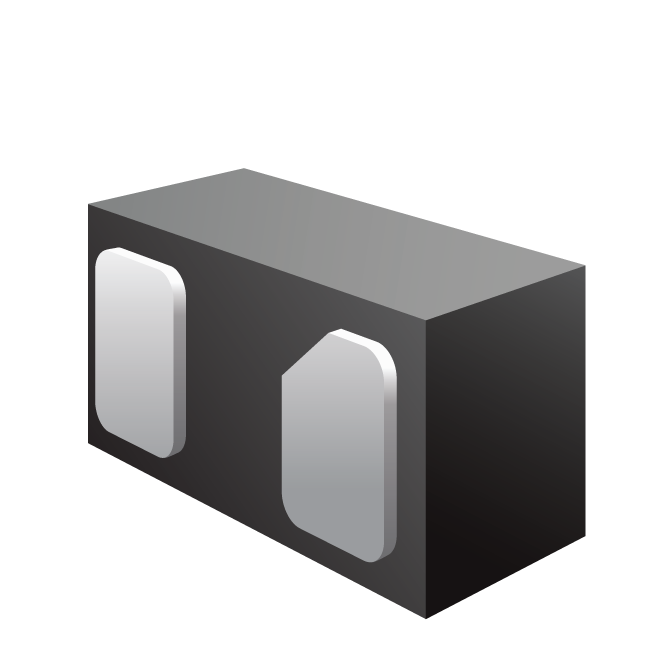

µClamp series are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. µClamp1291za offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
- High ESD withstand voltage: +/-20kV (air) and +/-15kV (contact) per IEC 61000-4-2
- Protects one I/O or power line
- Low ESD clamping voltage
- Working voltage: +12V
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular handsets and accessories
- Notebooks and handhelds
- Portable instrumentation
- DFN 0.60x0.30x0.25mm 2-lead
