The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics.
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)

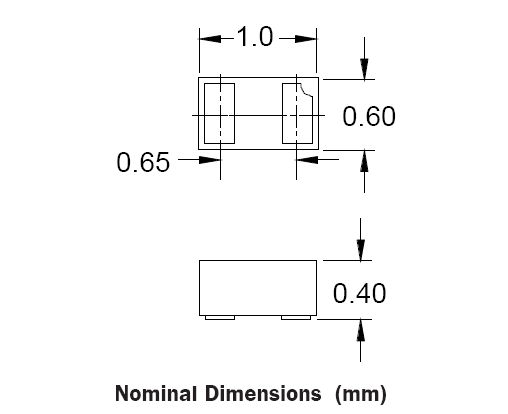

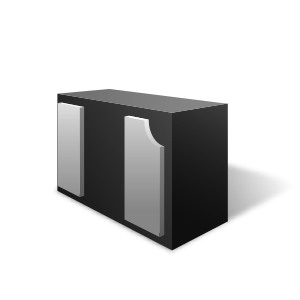

- Ultra-small package (1.0 x 0.6 x 0.4mm)

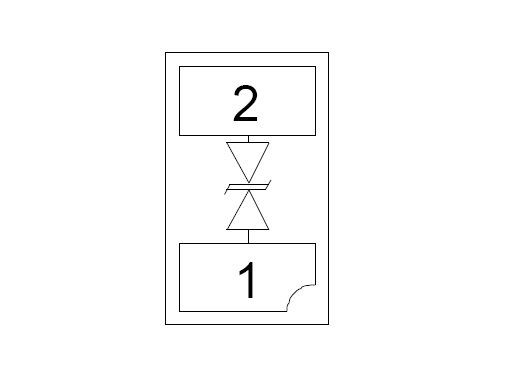

- Protects one data or power line
- Low reverse current: <1nA typical (VR=12V)
- Working voltage: - 12V / +12V
- Low capacitance: 3pF typical
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- FM Antennas
- Keypads, Side Keys, LCD Displays
- Battery, Power Lines
- Notebooks & Desktop Computers
- Portable Instrumentation
- uClamp1211T.TCT: Lead-Free, WEEE and RoHS Compliant, 3000 pcs Tape and Reel only
