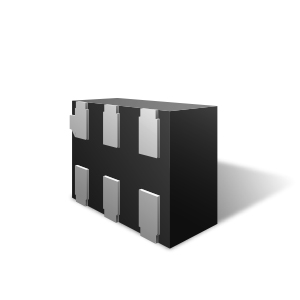

μClamp TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. They feature large cross-sectional area junctions for conducting high transient currents. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- High ESD withstand Voltage: +/-12kV (Contact) per IEC 61000-4-2
- Very small PCB area: 0.7mm2
- Protects up to five data lines
- Low reverse current: <10nA typical (VR=5V)
- Working voltage: +/- 5V
- Low capacitance: 4pF typical
- Low dynamic resistance: 0.70 Ohms (Typ)
- Solid-state silicon-avalanche technology
- Cellular Handsets & Accessories
- Keypads, Side Keys, Audio Ports
- LCD Connectors
- Digital Lines
- Analog Video
- uClamp0545T.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
