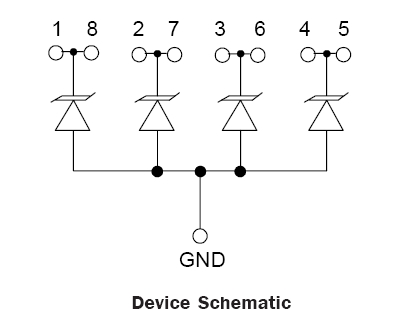

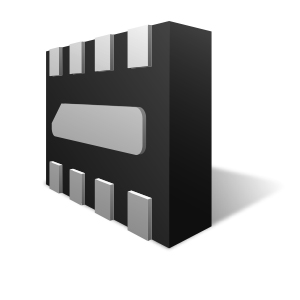

The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD, lightning, and other voltage-induced transient events. Each device will protect up to four lines operating at 5 volts.
- Transient protection for data lines to
- -IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)

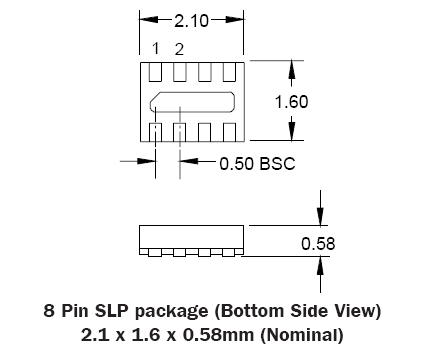

- Small package for use in portable electronics
- Protects four I/O lines
- Working voltage: 5V
- Flow thru design for easy layout
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Lead-Free, RoHS and WEEE Compliant
- Cellular Handsets & Accessories
- Personal Digital Assistants (PDAs)
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- MP3 Players
- Package Minimum Tape & Reel Only
