Overview
uClamp®0512ZA is an ultra-small electrostatic discharge (ESD) protection device designed to protect two high-speed lines in an 0201 footprint. This revolutionary package design reduces board space requirements by more than 50% over existing single line solutions. The combination of small size and high ESD surge capability makes them ideal for use in portable applications such as cellular phones, digital cameras and tablets.
Packaging

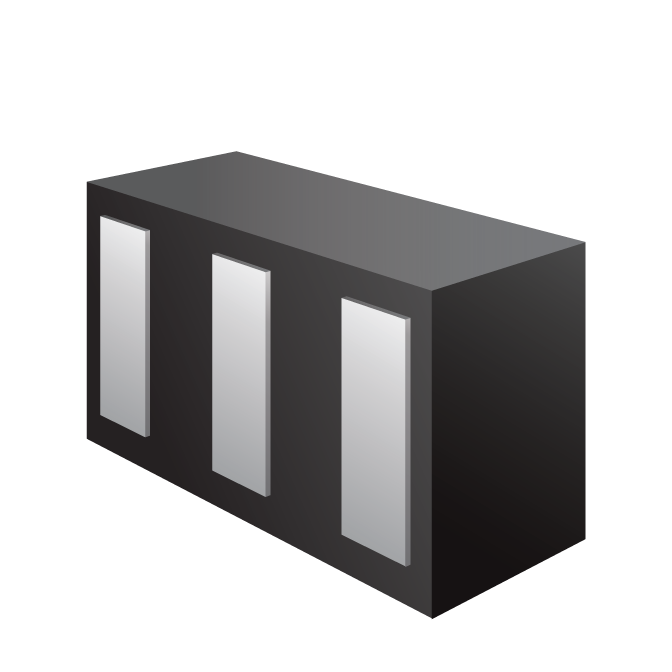

- DFN 0.62 x 0.32 x 0.25mm - 3 lead package
Order Codes
- uClamp0512ZATFT
PB Free/ROHS
Learn More →Features
- High ESD withstand voltage IEC 61000-4-2 (ESD) 15kV (air), 12kV (contact)
- Very small PCB area
- Protects two data lines
- Working voltage: 5V
- Low reverse leakage current
- Low ESD peak clamping voltage
- Low dynamic resistance
- Solid-state silicon-avalanche technology
Documents | Release Date | Type | |
---|---|---|---|
UCLAMP0512ZA Datasheet | 2023-09-05 |
Applications
- Cellular handsets and accessories
- Keypads, side keys, audio ports
- Portable instrumentation
- Notebook computers
- Tablet PC
