Overview
μClamp TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. They features large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage,and no device degradation.
Product is not recommended for new design.
Packaging

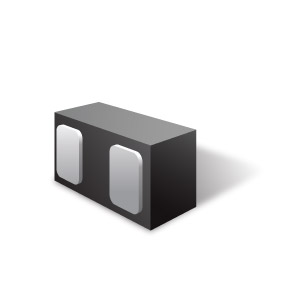

- SLP0603P2X3 package
- Pb-Free, Halogen Free, RoHS/WEEE compliant
- Nominal Dimensions: 0.6 x 0.3 x 0.25 mm
- Packaging: Tape and Reel
Order Codes
- μClamp0511Z.TFT
- Qty: 15,000
- Reel size: 7”
- μClamp0511Z.TNT
- Qty: 10,000
- Reel size: 7”
PB Free/ROHS
Learn More →Features
- High ESD withstand Voltage: +/-15kV (Air) and +/-8kV (contact) per IEC 61000-4-2
- Able to withstand over 1000 ESD strikes per IEC61000-4-2 Level 4
- Ultra-small 0201 package
- Protects one data line or power line
- Low leakage current: <10nA (VR=5V)
- Working voltage: +/-5V
- Low dynamic resistance: 0.64Ω (typ)
- Solid-state silicon-avalanche technology
Documents | Release Date | Type | |
---|---|---|---|
UCLAMP0511Z Datasheet | 2018-12-15 |
Applications
- Cellular Handsets & Accessories
- Keypads, Side Keys, Audio Ports
- Portable Instrumentation
- Digital Lines
- MP3 Players
