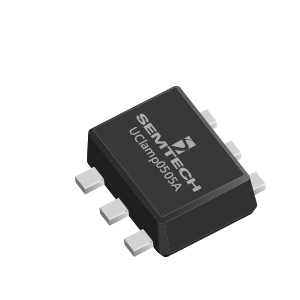

The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium.

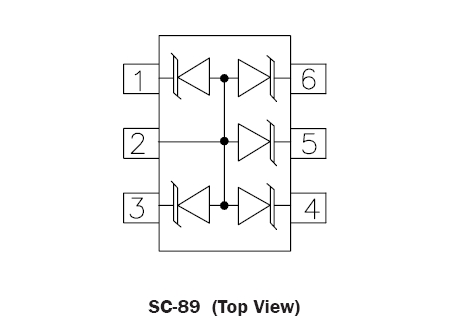

- Protects up to 5 unidirectional I/O lines or 4 bidirectional I/O lines
- Working voltage: 5V
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ± 15kV (air), ± 8kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)

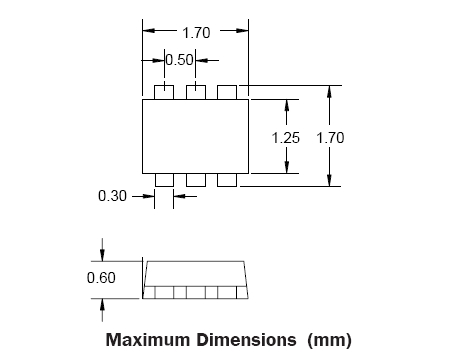

- Ultra-small SC-89 package (1.7 x 1.7 x 0.6mm) requires less than 2.9mm2 of PCB area
- Low leakage current
- Low operating and clamping voltages
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- Cellular handsets & accessories
- Cordless phones
- Personal digital assistants (PDAs)
- Notebooks & handhelds
- Portable instrumentation
- Digital cameras
- MP3 players
- 3000 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
