The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDAs.
- Working voltage: 5 V
- Protects one I/O or power line
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50 ns)
- Cable discharge event (CDE)

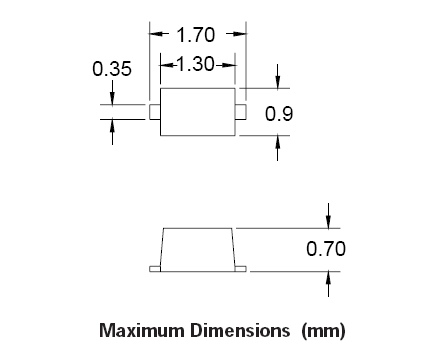

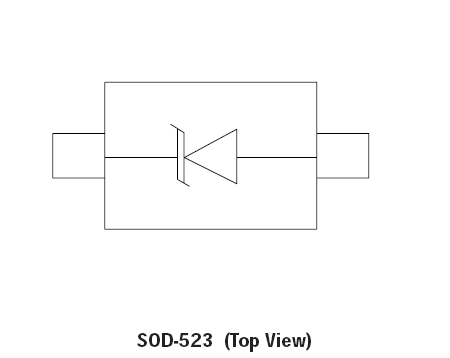

- Ultra-small SOD-523 package (1.7 x 0.9 x 0.7 mm)
- Low clamping voltage
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular handsets & accessories
- Cordless phones
- Personal digital assistants (PDAs)
- Notebooks & handhelds
- Portable instrumentation
- Digital cameras
- MP3 players

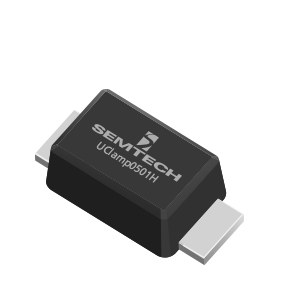

- UCLAMP0501H.TCT: Lead-free, RoHS and WEEE compliant, 3000 pcs. Tape & Reel
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
