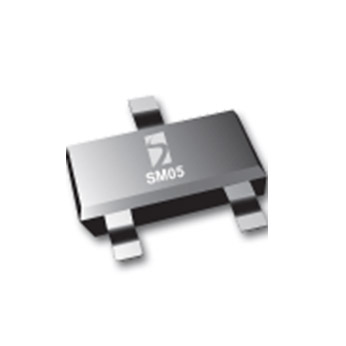

SM05
The SM series of transient voltage suppressors (TVS) are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
Features
- 5 V working voltage
- 300 Watts peak pulse power (tp = 8/20 µs)
- Protects one bidirectional line or two unidirectional lines
- Transient protection for data & power lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 24 A (8/20 µs)
- Low clamping voltage
- Solid-state silicon-avalanche technology
- Lead-free, RoHS and WEEE compliant
- Cellular handsets and accessories
- Portable electronics
- Industrial controls
- Set-top boxes
- Server, notebook, and desktop PCs
Applications
Packaging
- SOT-23
- 3000 pcs. Tape & Reel
Order Codes
- SM05.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SM05
Part Description
300W TVS2 5V 7"RL LEAD-FREE
# of leads
3
Package Type
SOT-23
Pb-Free (2)
YES
Reflow Temp °C (3)
260
Lead or Ball Finish
MATTE Sn
MSL Rating
1
REACH SVH C(233) EC1907/2006 (18)
YES Download Report
JIG 101 A & B (12)
YES
YES Download Report
RoHS 2/3 Amend 2015/863 (7)
YES Download Report
WEEE 2012/19/EU (19)
YES
China RoHS 2 GB/T 26572-2011
YES Download Report
Halogen Free / Low IEC 61249-2-21/JS709C (20)
YES Download Report
Proposition 65 (21)
YES Download Report
Packaging Material 94/62/EC (17)
YES Download Report
RoHS Compliant by Exception (8)
NO
Whisker Testing (10)
Thermal Cycling Whisker Test
(-40°C to +85°C / 4000 cycles)
(-40°C to +85°C / 4000 cycles)
YES
Ambient Temperature Storage, Whisker Test
(50°C, 4000 Hrs)
(50°C, 4000 Hrs)
YES
60°C/90%RH 4000 Hrs, Whisker Test
YES
Declarations and Reports
IPC-1752-2
