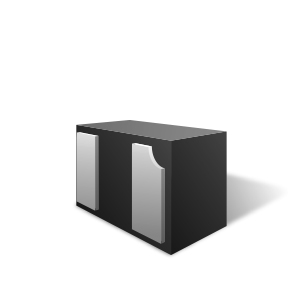

uClamp0511PQ
The μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD.
Features
- Transient protection for data lines to
- IEC 61000-4-2 (ESD) ±30kV (air and contact)
- IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
- Cable Discharge Event (CDE)
- Ultra-small package (1.0 x 0.6 x 0.5mm)
- Protects one I/O or power line
- Low clamping voltage
- Working voltage: 5V
- Low leakage current
- Solid-state silicon-avalanche technology
- AEC-Q100 Grade 1 Qualified
- Cellular Handsets & Accessories
- Cordless Phones
- Smart Phones
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- MP3 Players
- Automotive Applications
Applications
Packaging
- SLP1006P2
Order Codes
- uClamp0511PQTCT: RoHS and WEEE compliant, 3000 pcs. Tape & Reel
Pb(Lead)-Free/RoHS-Green Info
Datasheets & Documentation
Explore a wealth of downloadable resources and datasheets to assist with prototyping and production.
Login or register for mySemtech to gain access to restricted product documentation and to add documents to your Watch List for update alerts
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributors here.
Part # | Country | Qty | Buy | Distributor |
---|
