RailClamp® TVS diodes are specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (cable discharge events), and EFT (electrical fast transients).
- Transient protection for data lines to
- IEC 61000-4-2 (ESD)
- IEC 61000-4-4 (EFT)

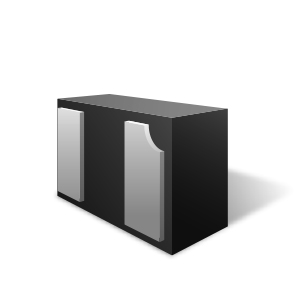

- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line or one I/O pair
- Low capacitance: 0.35pF (Typical)
- Low clamping voltage
- 24V operating voltage
- Solid-state silicon-avalanche technology
- Qualified to AEC-Q100 Grade1 for Automotive
- Pb-Free, Halogen Free, RoHS/WEEE Compliant
- Automobile Antenna
- CAN Bus Ports
- Cellular Handsets & Accessories
- Wi-Fi Interfaces
- FeliCa / RFID
- Serial ATA
