The EClamp®8052PQ integrates common mode filtering with low capacitance ESD protection. The AEC-Q100 qualified device is designed specifically for MIPI, MHL, and USB interfaces. Each device provides filtering and ESD protection for one high-speed differential pair.
- Transient Protection to
- IEC 61000-4-2 (ESD) 30kV (Air), 25kV (Contact)
- IEC 61000-4-4 (EFT) 4kV (5/50ns)
- IEC 61000-4-5 (Lightning) 6A (8/20μs)
- ISO-10605 (ESD) 30kV (Air), 25kV (Contact)
- Qualified to AEC-Q100, Grade 1
- Package design optimized for high speed lines
- ESD protection and common mode filtering for two high-speed lines
- High differential bandwidth cutoff frequency
- Low ESD Clamping Voltage
- Dynamic Resistance: 0.50Ω (Typ)
- Solid-State Silicon-Avalanche Technology
- Automotive Applications
- Industrial Equipment
- USB 2.0 / USB 3.0
- HDMI / MHL
- MIPI Camera Serial Interface (CSI)
- MIPI Display Serial Interface (DSI)

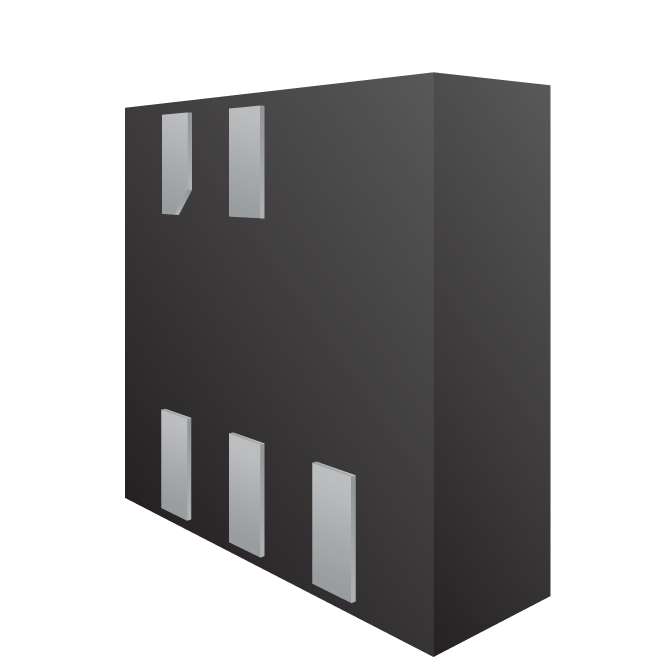

- SGP1917N5: 1.9 x 1.70 x 0.55 mm
- EClamp8052PQTCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, 3,000 pcs.
