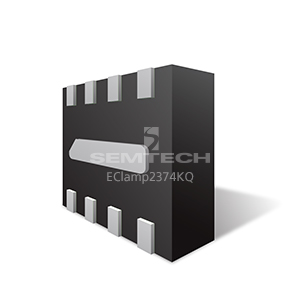

The EClamp®2374KQ is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI/RFI signals and provide electrostatic discharge (ESD) protection for Automotive grade electronics.
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- Transient Protection to:
- IEC 61000-4-2 (ESD) ±15kV (Air), ±8kV (Contact)
- ISO-10605 (ESD) ±30kV (Air), ±30kV (Contact)
- IEC 61000-4-4 (EFT) 4kV (5/50ns)
- Qualified to AEC-Q100, Grade 1
- Resistor: 100Ohms ±15% Protection and filtering for four lines
- Filter performance: 30dB minimum attenuation 1.8GHz to 2.5GHz
- TVS Working Voltage: 5V
- Solid-state silicon-avalanche technology
- Automotive Color LCD
- Automotive Infotainment
- Color LCD Protection
- CCD Camera Lines
- SLP1713P8 - 1.7 x 1.3 x 0.50 mm, 3,000 pcs, Tape and Reel.
- EClamp2374KQTCT - Pb-Free, Halogen Free, RoHS/WEEE compliant.
