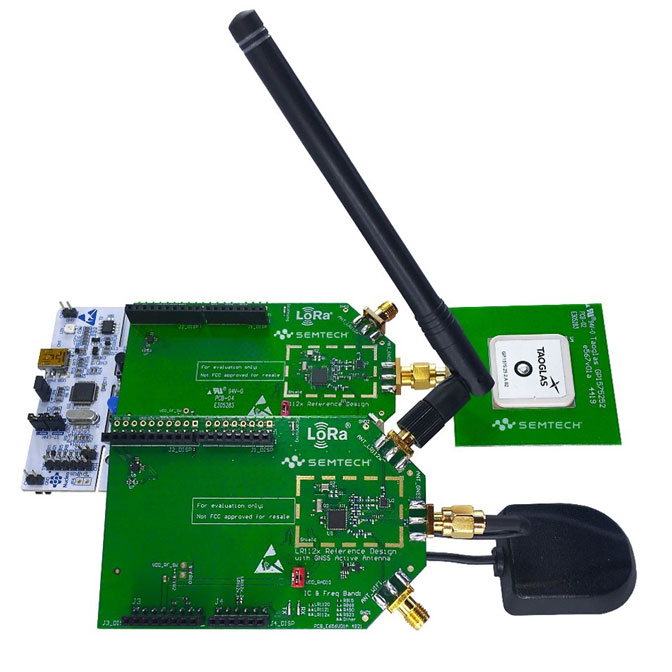

This development kit features Semtech's LoRa Edge™ LR1120 and is configured for the LoRa 915MHz Industrial, Scientific and Medical (ISM) band for North America, as well as for the global 2.4GHz ISM band.
- Based on LR1120
- PCB layers: 4
- 32MHz reference clock: TCXO
- Region: North America
- Frequency bands: 915MHz and 2.4GHz
- Tx out power: 22dBm (Sub-GHz) and 11.5dBm (2.4GHz)
- Each development kit contains two different RF modules:
- PCB version number: E655V01A
- Single RF module part number for passive GNSS antenna: LR1120MB1DIS
- PCB version number: E656V01A
- Single RF Module Part Number for active GNSS antenna: LR1120MB1DJS
- PCB version number: E655V01A
- Multi regional asset location, recovery and traceability
- Multi regional inventory management
- Multi regional asset loss and theft prevention
Datasheets & Documentation
Explore software downloads, documentation, recommended links, and more resources for this product.
LR-FHSS Demonstration & Drivers
This package contains drivers and demos for Long-Range Frequency Hopping Spread Spectrum (LR-FHSS) transmission.
LR11x0 EVK Demonstration Application
Demonstrator application for LR11x0 transceiver and LR1110 LoRa Basics Modem-E.
L2 Protocol Library
LoRa Basics Modem LoRaWAN L2 Library
LoRa Basics™ Modem is an easy-to-use software library that simplifies the development of LoRaWAN® end nodes.
LR11xx Transceiver Driver
This package proposes an implementation in C of the driver for LR11XX radio component.
LR1120 Transceiver Firmware
Software Development Kit
LoRa Basics Modem SDK for LR1110
LoRa Basics Modem SDK for basic GNSS accuracy contains several simple examples highlighting LoRa Basic Modem features.
Software Development Kit
LR11xx Transceiver SDK
The LR11xx SDK contains several simple examples for LR11xx transceivers.
LR11xx Firmware Updater Tool
Reference implementation of the mechanism to update a the LR11x0 firmware.
