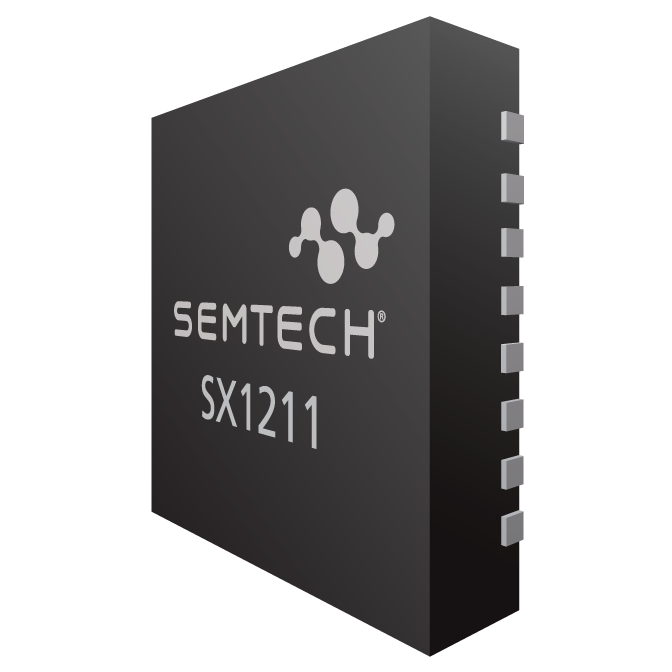

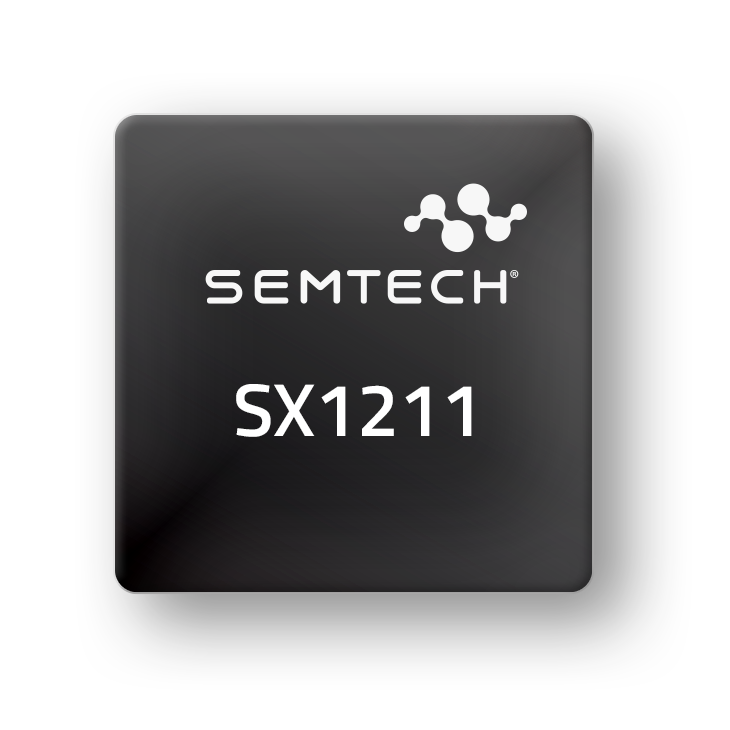

The SX1211 is a low cost single-chip transceiver operating in the frequency ranges from 863-870, 902-928MHz and 950-960MHz. The SX1211 is optimized for very low power consumption (3mA in receiver mode).
- Low Rx power consumption: 3mA
- Low Tx power consumption: 25 mA @ +10dBm
- Good reception sensitivity: down to -107dBm at 25 kb/s in FSK, -113 dBm at 2kb/s in OOK
- Programmable RF output power: up to +12.5dBm in 8 steps
- Packet handling feature with data whitening and automatic CRC generation
- RSSI (Received Signal Strength Indicator) range from noise floor to 0dBm
- Bit rates up to 200kb/s, NRZ coding
- On-chip frequency synthesizer
- FSK and OOK modulation
- Incoming sync word recognition
- Built-in Bit-Synchronizer for incoming data and clock synchronization and recovery

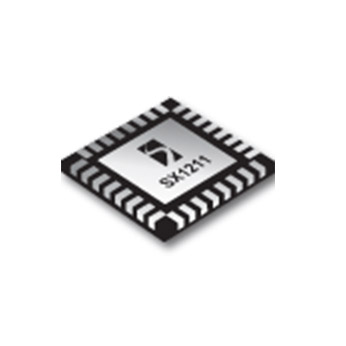

- 5 x 5mm TQFN package
- Optimized circuit configuration for low-cost applications
- Wireless alarm and security systems
- Wireless sensor networks
- Automated Meter Reading
- Home and building automation
- Industrial monitoring and control
- Remote Wireless Control
- Smart Lighting Systems
- SX1211I084TRT: TQFN-32, Lead Free RoHS and WEEE Compliant, 3,000 pcs on Tape & Reel
- SX1211-11SKA868: SX1211 USB Starter Kit 862-870MHz
- SX1211-11SKA915: SX1211 USB Starter Kit 902-928MHz
- SX1211MESH-868: Mesh Network 868MHz Starter Kit
- SX1211MESH-915: Mesh Network 915MHz Starter Kit
- SX1230-13RKEA433: Turnkey Remote Keyless Entry Reference Design Kit with SX1230 transmitter, SX1211 or SX1212 Transceiver, KEELOQ® code-hopping encryption software and Microchip’s PIC16F631 or PIC16F677 8-bit MCU
(-40°C to +85°C / 4000 cycles)
(50°C, 4000 Hrs)
Datasheets & Documentation
Software Releases (Firmware)
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
