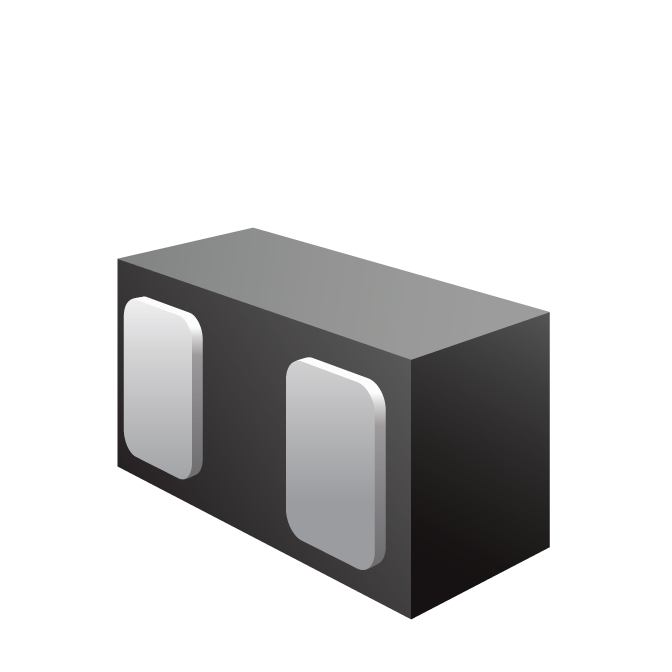

uClamp2011ZA
μClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. They also offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
Features
- High ESD withstand voltage: ±22kV (contact) and ±30kV (air) per IEC 61000-4-2
- High lightning surge capability: ±3A (tp=8/20μs) per IEC 61000-4-5
- Ultra small 0201 package
- Protects one data or power line
- Low ESD clamping voltage
- Working voltage: ±20V
- Low maximum leakage current: 10nA
- Solid-state silicon-avalanche technology
- Pb-free, halogen-free, RoHS/WEEE-compliant
- Cellular handsets & accessories
- Notebook computers
- Tablets
- Portable instrumentation
- Peripherals
Applications
Packaging
- DFN 0.60 x 0.30 x 0.25mm-2 lead - 15,000 pcs
Order Codes
- μClamp2011ZATFT
