PClamp® TVS diodes are designed for use in harsh transient environments to protect sensitive electronics from damage or latch-up due to electrical overstress (EOS), lightning, cable discharge events (CDE), and electrostatic discharge (ESD). They feature large cross-sectional area junctions for conducting high transient currents. These devices offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
- Transient Protection to:
- IEC 61000-4-2 (ESD) 30kV (air), 30kV (contact)
- IEC 61000-4-4 (EFT) 4kV (5/50ns)
- IEC 61000-4-5 (lightning) 180A & 120A (8/20μs)
- Protects one power line
- Low leakage current
- Solid-state silicon-avalanche technology
- Cellular handsets and accessories
- Industrial equipment
- Voltage supply lines
- Battery protection
- USB VBUS

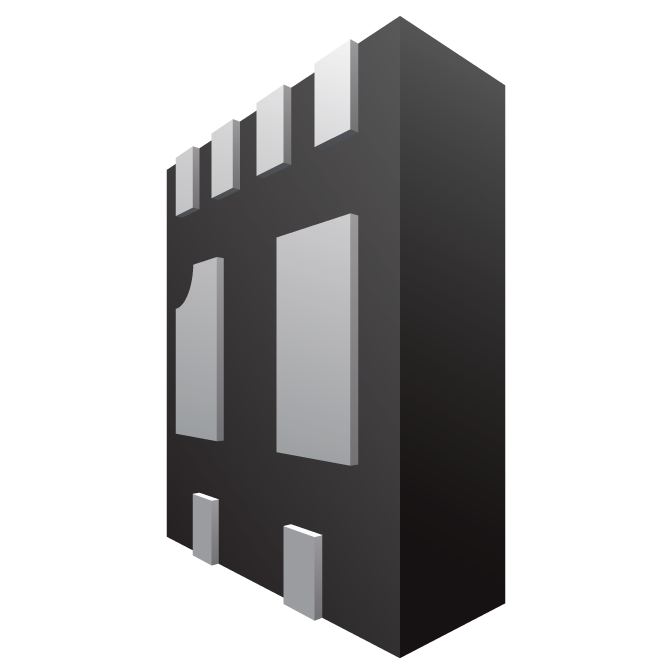

- DFN 2.0 x 1.8 x 0.57mm 6-Lead
- PClamp2011P.TGT: Pb-free, Halogen-free, RoHS/WEEE-compliant, 10,000 pcs.
